Autoclave Process
Bacterial spores which tends to be the most persistent, can survive for long periods in adverse conditions.


                                                           >> read more


Autoclave Power/fuel
Steam is provided to the chamber from external source e.g., steam generator/boiler.


                                                                  >> read more

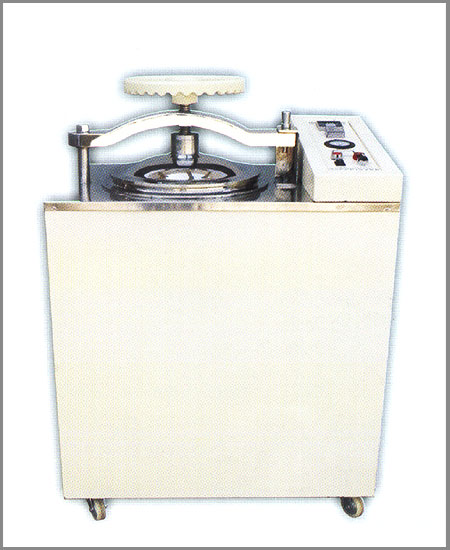

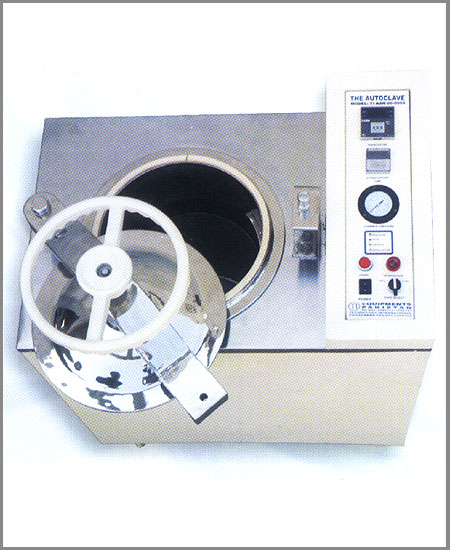

Steam Sterilizer Vertical


Features

  Automatically Controlled
  Automatic Air Removal
  Digital Timer
  Round Shape Chamber
  Automatic Release of Air & Steam
  Programable
  Single & Jacketed Chambers

Technical Specifications
  Temperature Range    : 121 C -134 C
  Pressure                    : 15 psi 30 psi
  Safety                       :  Safety Valve, Overheat Cutoff, Pressure Switch
  Chamber                   : Stainless Steel, 304L
  Outer Body                : Powder Coated
  Sterilization Temp      : 121 C for Lab, 121 C to 134 C for Hospital

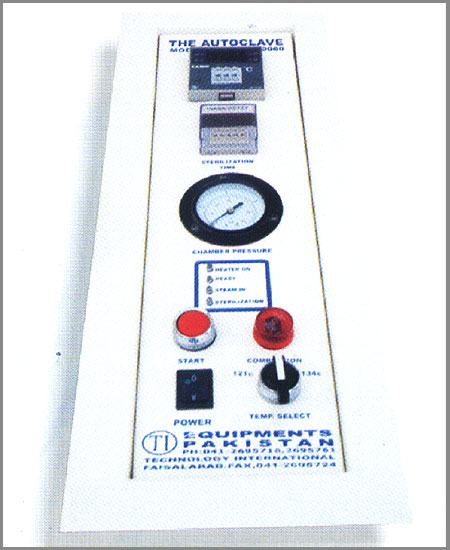

  Indication                  : Simultaneous Indication of Temperature,
                                      Pressure & Time, Phases of Operation

  Ordering Information


Dimensions of Working Area

Model Number

Volume (L)

Dimension (Inches) WHD

Dimension (mm) WHD

Power (KW)

TI-AA-07-0020

020

1016

250408

2.0

TI-AA-07-0046

046

1226

300660

4.5

TI-AA-07-0060

060

1426

355660

6.0

TI-AA-07-0085

085

1626

406660

6.0

TI-AA-07-0100

0100

1728

425710

9.0

TI-AA-07-0140

0140

1738

425965

9.0
