  Steam Sterilizer Class N

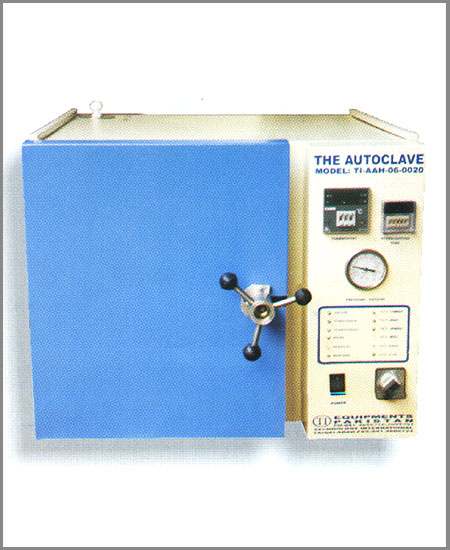

Small High Pressure Automatic Steam Sterilizer, Class N

Application

High pressure quick sterilizer used for
  Dental
  Ophthalmology and
  Surgical operations

  Specifications


Temperature range

100ēC-130ēC

Pressure

15-30 PSI

Safety

Overheat protection
Thermostatic and pressure control
Safety valve

Water supply

Auto filling

Drain

Auto drain

Gaskit

Silicon high temperature

Temperature control

Micro processor control with digital display

Timer

Digital timer, Japan

Power

220 V,50 Hz, 2 KW

Function

Automatic cycle with indication of each step at front panel

Construction

Chamber

Outer body



Stainless steel 304L
Powder coated



Technical Data



Model

Volume

Chamber Dimension

Power

Sterilization Time

Total Cycles

TI.AAN.07.0010

10L

228×304mm

1.5 KW

121 ēC, 15 min

134 ēC, 04 min

25 min

18 min

TI.AAN.07.0020

20L

250×408mm

2.0 KW

121 ēC, 15 min

134 ēC, 04 min

25 min

18 min
