Autoclave
Technical
Specifications |
 |
| |
|
|
 |
|
Temp. Range (Working) 121 ºC -134 ºC |
|
|
|
Pressure 15 Psi-30 Psi |
|
|
|
Safety Devices Safety valve, Overheat Cut off,
Pressure Control Switch. |
|
|
|
Drain Auto-drain, Manual Operation. |
|
|
|
Filling Auto-fill, Manual Filling |
|
|
|
Timer 0-250 minutes Digital Timer for
Sterilization & Drying Cycle |
|
|
|
Door system Auto-lock and Manual System. |
|
|
|
Panel Front Mounted. |
| |
|
|
|
|
|
Construction |
|
|
Chamber |
Stainless Steel (304L or 316L) chamber and door. |
|
|
|
Body |
Mild steel powder coated and Stainless steel (Optinal). |
|
|
|
Operation/Power |
Electrically operated at 220/240V, 50/60 Hz
Single/three phase or steam operated, fid from
boiler or Steam generator |
|
|
|
Sterilization Temp |
121 ºC for Lab Units.
121 ºC & 134 ºC for Hospitals.
121 ºC & Pharma. |
|
|
|
Programs |
Program for Lenin.
Program for Instrument.
Program for Gloves.
Program for Liquids |
|
|
|
Standard Accessory |
A sterilization basket according the chamber
size |
|
|
|
Controls |
Digital and analogue indication of temperature,
accuracy +/-0.5 ºC at 120 ºC with pressure
gauge. |
|
|
|
Indications |
Simultaneous indication of temperature &
pressure. |
|
|
|
Process Control |
Semi automatic as standard.
PLC control.
Fully automatic computer control optional. |
|
|
|
Phases of
Operation |
For Hospital CSSD & TSSU & Pharma units.
Pre. vacuum cycle.
Sterilization cycle.
Post vacuum cycle |
|
|
|
Validation
System Optional for pharma |
Multi
channel recorder, 3-12 channel with printer &
computer interface |
|
|
| |
|

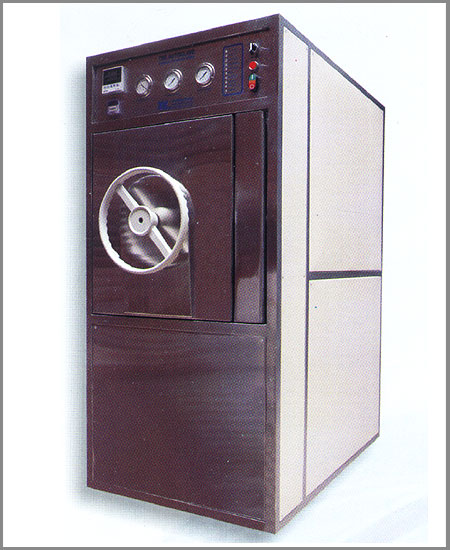

Autoclaves
Horizontal |
|
Dimensions of Working
Area |
|
Model Number |
Volume (Liter) |
Dimension (Inches)
W×H×D |
Dimension(mm)W×H×D |
|
TI-AA-07-0150 |
150 |
16×16×36 |
406×406×0915 |
|
TI-AA-07-0200 |
200 |
18×20×36 |
457×508×0915 |
|
TI-AA-07-0300 |
300 |
20×24×40 |
508×610×1016 |
|
TI-AA-07-0400 |
400 |
24×24×42 |
610×610×1057 |
|
TI-AA-07-0700 |
700 |
30×30×48 |
761×761×1220 |
|
TI-AA-07-1150 |
1150 |
36×36×54 |
914×914×1375 |
|
TI-AA-07-1300 |
1300 |
37×37×60 |
940×940×1528 |
|
TI-AA-07-1700 |
1700 |
42×42×60 |
1060×1060×1520 |
|
TI-AA-07-2700 |
2700 |
48×48×72 |
1217×1217×1827 |
|
TI-AA-07-3170 |
3170 |
48×48×84 |
1220×1220×2130 |
|
TI-AA-07-3600 |
3600 |
48×48×96 |
1220×1220×2438 |
|
TI-AA-07-7000 |
7000 |
60×60×120 |
1520×1520×3030 |
|
| |
|
Ordering
Information |

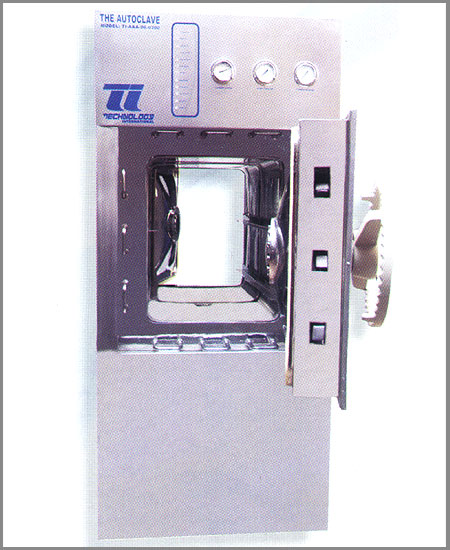

Hospital & Industrial
scale Autoclaves, Model with Round Shape Door &
Chamber,
Single/Double Door. |
|
Dimensions
of Working Area |
|
Model
Number |
Volume(Liter) |
Dimension (Inches)
Dia × Depth |
Dimension (mm) Dia ×
Depth |
|
| |
|
Autoclaves
Horizontal |
|
TI-AA-06-0240 |
240 |
23×36 |
580×914 |
|
TI-AA-06-0350 |
350 |
26×40 |
663×1015 |
|
TI-AA-06-0400 |
400 |
28×40 |
709×1018 |
|
TI-AA-06-0500 |
500 |
29×48 |
724×1219 |
|
TI-AA-06-0600 |
600 |
30×52 |
762×1320 |
|
TI-AA-06-0750 |
750 |
30×65 |
762×1649 |
|
TI-AA-06-1000 |
1000 |
36×60 |
915×1524 |
|
TI-AA-06-1100 |
1100 |
36×66 |
915×1677 |
|
TI-AA-06-1500 |
1500 |
42×66 |
1067×1079 |
|
TI-AA-06-2000 |
2000 |
48×69 |
1210×1744 |
|
TI-AA-06-2500 |
2500 |
48×84 |
1220×2142 |
|
| |
|
